The upgraded solar panel generates electricity from both sides. The solar cell on the back side absorbs reflective and diffused sunlight, boosting 25% of conversion rate.
Fast Delivery
3+2 Years Warranty
30-Day Money back
- FEATURES
- TECH SPECS
- FAQ
- REVIEWS
Extensive Compatibility
The 80W Solar Panels are fully compatible with all Jackery Power Stations, providing first-rate charging options with up to 12pcs of 80W solar panels charged at the same time. You can charge in any way you want.
How Many Solar Panels Do I Need
Choose One Type of Solar Panel
Recharging Time
Sustainable Energy Saving
Product Recommendation
Product Comparison
Product Details
Specs in Pictures
Specs
User Manual
1. Solar Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.
3. Avoid contact with corrosive substances during storage, keep away from fire and heat sources. Avoid storing with sharp objects at the same time.
FAQ
-
The solar panel 80W comes with a reflective carrying case. It features double-sided power generation through the reflective optical fiber, and reflective angle can be adjusted, through the sticking position of the magic tape of the carrying case.
-
Yes, the 80W solar panel is compatible with all Jackery power stations model.
-
The 80W solar panel is waterproof with the IP68 rating, however note the port is not waterproof.
-
The solar panel glass is fitted with a special structure design, with no glass slag generated - rest assured the product is extremely safe.
-
The silicone cover is mainly dustproof - there's a function mark at the switch button.
-
Unfortunately the cover cannot be disassembled. The silicone cover is designed together with the product body preventing loss.
-
It comes with the IEC TS63163.
-
The cable is located in the side pocket of the carrying bag.
-
We have the 5-meter extension cable - please check the link: https://ca.jackery.com/products/dc-extension-cable-for-solar-panel
- FEATURES
- TECH SPECS
- FAQ & REVIEWS
JACKERY SOLAR WAY. MORE THAN FAST.

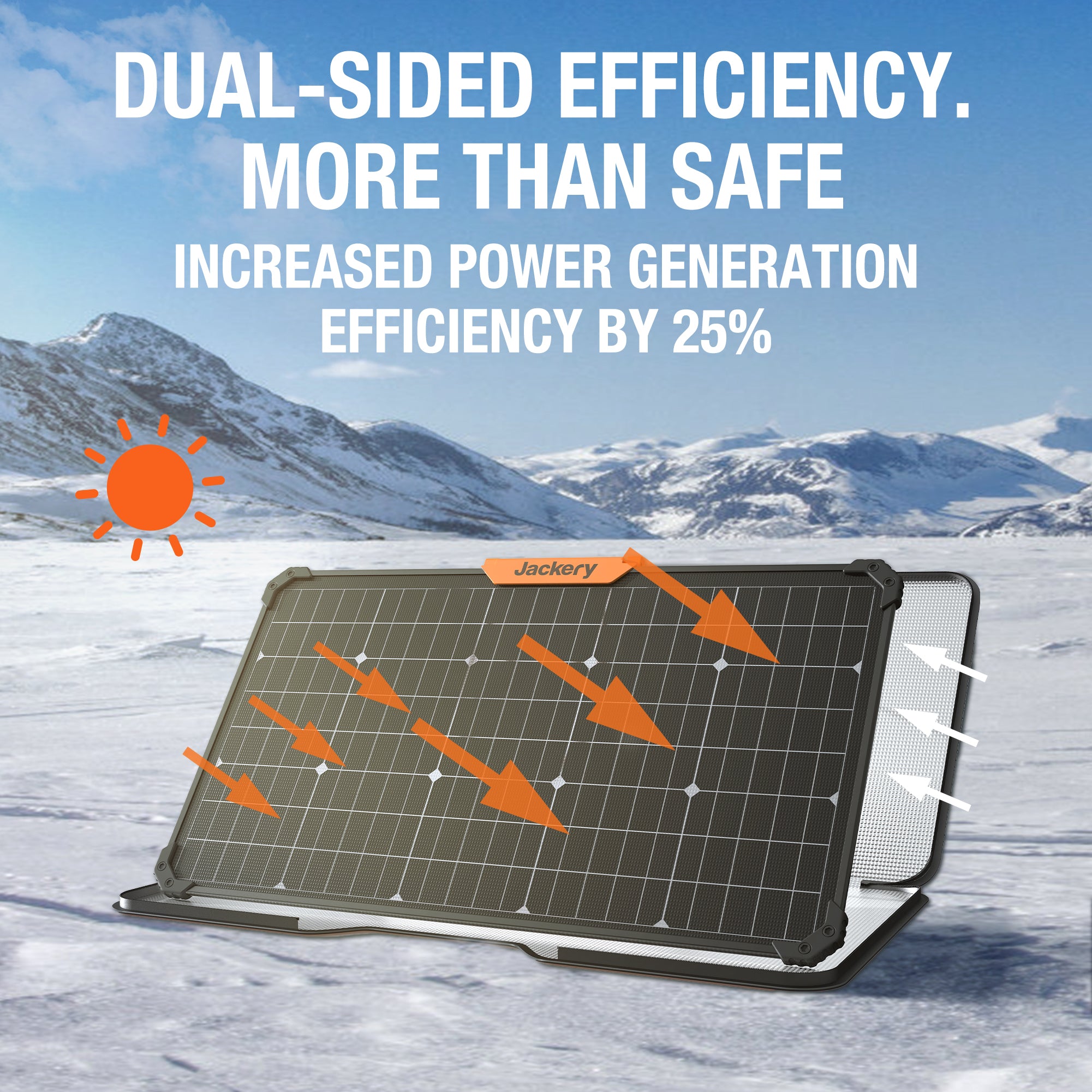

DUAL-SIDED PANELS ENHANCED SOLAR EFFICIENCY
DUAL-SIDED PANELS ENHANCED SOLAR EFFICIENCY
The upgraded solar panel generates electricity from both sides. The solar cell on the back side absorbs reflective and diffused sunlight, boosting 25% of conversion rate.

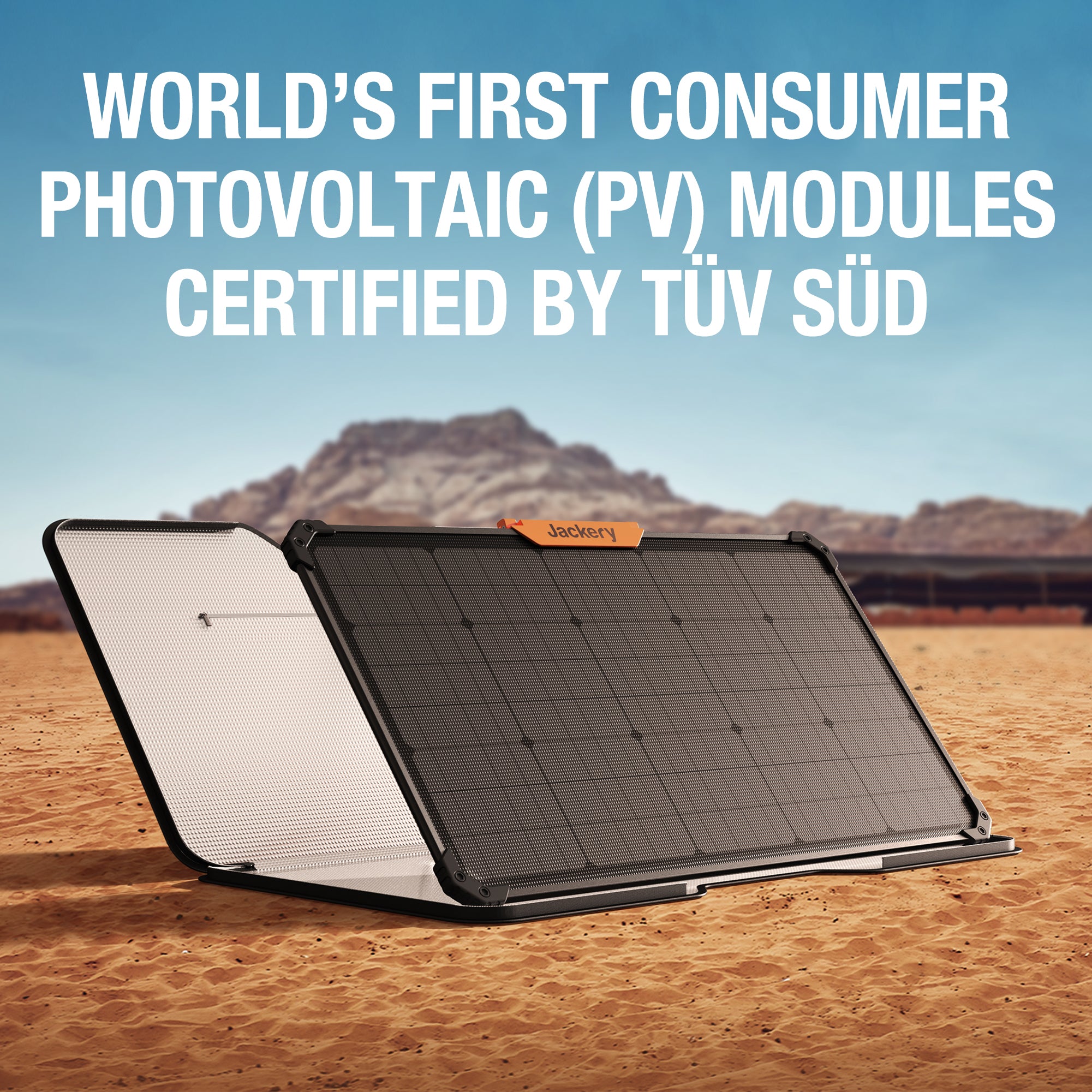

World’s First Consumer Photovoltaic (PV) Modules Certified by TÜV SÜD
* The world's first photovoltaic product to receive TÜV SÜD's prestigious IEC TS63163 certification.
* Adopted intdustrial-grade photovoltaic materials & passed 15 professional tests.
World’s First Consumer Photovoltaic (PV) Modules Certified by TÜV SÜD
* The world's first photovoltaic product to receive TÜV SÜD's prestigious IEC TS63163 certification.
* Adopted intdustrial-grade photovoltaic materials & passed 15 professional tests.
MAJORLY DURABLE. MORE THAN SAFE
- Made of 2.8mm low iron full toughened glass, giving durability to the solar panel, with a unique corner design adding strength.

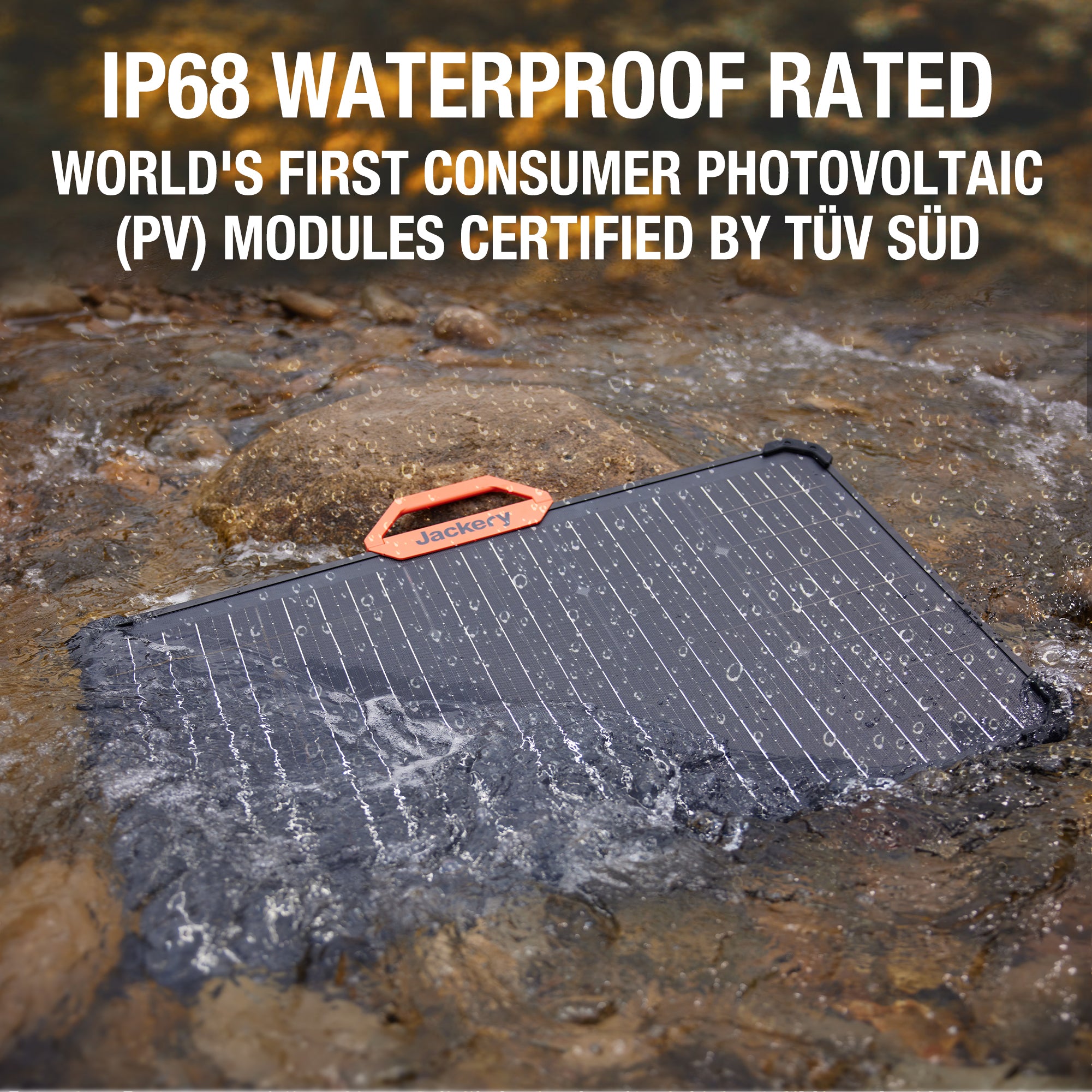

WATER & DUST RESISTANCE
- IP68 waterproof and dustproof certified - the ideal solar panel for outdoor extreme conditions.
MAJORLY DURABLE. MORE THAN SAFE
- Made of 2.8mm low iron full toughened glass, giving durability to the solar panel, with a unique corner design adding strength.
WATER & DUST RESISTANCE
- IP68 waterproof and dustproof certified - the ideal solar panel for outdoor extreme conditions.
SIMPLE & SPEEDY SETUP IN 60 SECONDS
An innovative foldable design delivers easy storage and operation - charge away in seconds.
SIMPLE & SPEEDY SETUP IN 60 SECONDS
An innovative foldable design delivers easy storage and operation - charge away in seconds.
EXTENSIVE COMPATIBILITY
The 80 W Solar Panel features full-compatibility with all Jackery Power Stations.
EXTENSIVE COMPATIBILITY
The 80 W Solar Panel features full-compatibility with all Jackery Power Stations.
PAIR AS YOU LIKE
Specifications
SOLAR
Peak Power:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
80W
22V
3.6A
28.5V
3.71A
GENERAL
Weight:
Dimensions:
Operating Usage Temperature:
Warranty:
5.1kg
906 x 528 x 27 mm
-10-65℃(14-149°F)
36 Months
USER MANUAL
Specifications
SOLAR
Peak Power:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
80W
22V
3.6A
28.5V
3.71A
GENERAL
Weight:
Dimensions:
Operating Usage Temperature:
Warranty:
5.1kg
906 x 528 x 27 mm
-10-65℃(14-149°F)
36 Months
USER MANUAL
Specifications
SOLAR
Peak Power: 80W
Power Voltage: 22V
Power Current: 3.64A
Open Circuit Voltage: 28.5V
Short Circuit Current: 3.71A
General
Weight: 5.1Kg
Dimensions: 906 x 528 x 27 mm
Operating Usage Temperature: -10-65℃(14-149°F)
Warranty: 36 Months
User Manual
FAQs
Q: How can I use the double-sided power generation function of the 80W solar panel?
A: The solar panel 80W comes with a reflective carrying case. It features double-sided power generation through the reflective optical fiber, and reflective angle can be adjusted, through the sticking position of the magic tape of the carrying case.
Q: Can I use the 80W solar panel to recharge other Jackery models?
A: Yes, the 80W solar panel is compatible with all Jackery power stations model.
Q: Is the 80W Solar Panel waterproof?
A: The 80W solar panel is waterproof with the IP68 rating, however note the port is not waterproof.
Q: Is the glass on the back of the 80W board dangerous?
A: The solar panel glass is fitted with a special structure design, with no glass slag generated - rest assured the product is extremely safe.
Q: Why is there no functional logo on the silicone cover?
A: The silicone cover is mainly dustproof - there's a function mark at the switch button.
Q: Is the silicone cover removable/replaceable?
A: Unfortunately the cover cannot be disassembled. The silicone cover is designed together with the product body preventing loss.
Q: What certifications does the 80W have?
A: It comes with the IEC TS63163.
Q: Where is the 2-meter extension solar cable of the 80W located?
A: The cable is located in the side pocket of the carrying bag.
Q: Is there a DC extension cable for the solar panel?
A: We have the 5-meter extension cable - please check the link: https://www.jackery.com/products/dc-extension-cable-for-solar-panel
