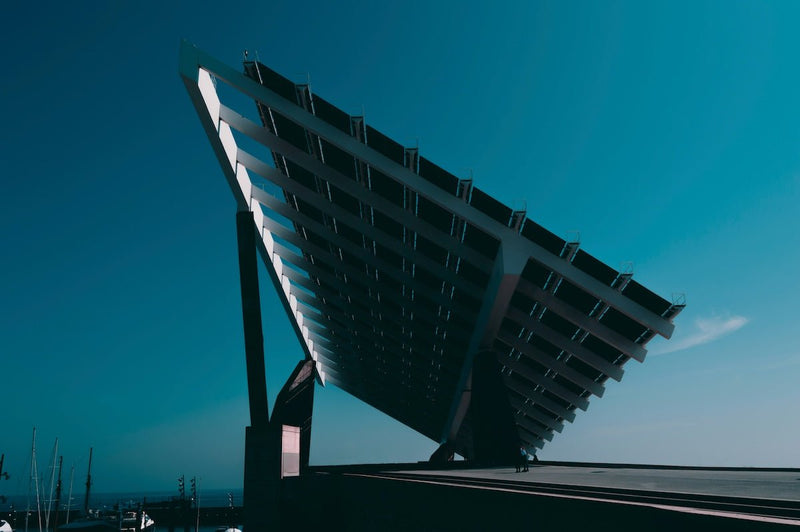

Solar racking is a very important part when it comes to the installation of ground-mounted, roof-mounted, or tracking racking systems. These structures are generally made of aluminum and stay hidden from the top. However, they are placed to mount solar panels to various surfaces, which ensures optimal orientation and stability.
According to the NREL, the residential solar racking system costs approximately $0.16/W. For a typical 6000W residential system, this cost would come around $600 at the least. On average, most American households pay $20,000 for the complete solar panel installation. If you wish to avoid such exorbitant charges, you can always go ahead with Jackery Solar Generators, which can charge most of your household appliances and can easily be carried outdoors to power heavy-load appliances.
Key Takeaways
In this detailed guide to understanding solar racking systems, you will understand:
- The important features of solar racking.
- Different types of solar racking systems, along with their pros and cons.
- The overall cost of solar racks adds to the solar panel installation.
- And how Jackery Solar Generators can save your installation costs and reduce your monthly average electricity bills.
What Is Solar Racking?
Solar racking refers to the overall framework that is used to mount, support, and position solar panels on various surfaces, like roofs and grounds. This framework is extremely important for properly functioning the solar panels, as it ensures they remain stable and optimally positioned.
At the same time, the rightly placed solar racks also ensure that they do not create structural problems for the overall property.
Features of Solar Racking
Solar racking systems have several key features that make them an integral part of any solar installation. Some of the notable features of solar racking are:
Support & Stability
The solar racking system provides support and stability to the solar panels. Solar panel mounting components are composed of either steel or aluminum, which ensures that they can withstand environmental factors like snow, wind, and rain. Such stability and support are crucial to maintaining the performance of the mounted solar panels over time.
Optimal Positioning
Solar racks are engineered to position solar panels at the best angle and orientation to maximize sunlight exposure. This optimal positioning increases the overall energy output, helping residents and commercial building owners make the most of the available solar energy.
Facilitating Airflow
Proper ventilation is important for solar panels, as it helps them avoid reaching high temperatures. Prolonged overheating can also reduce their energy efficiency. The solar racking system includes adequate airflow around the panels, enhancing the performance and maintaining integrity in the long run.
Ease of Maintenance
Properly fitted solar racks allow easy access to the solar panels for maintenance and cleaning. Moreover, the average cost of solar panel replacement is $150 to $400. Without the solar racks, it becomes extremely difficult for the technicians to make the changes, resulting in an increase in cost.
Scalability
A well-designed solar racking system ensures that you can add more solar panels in the future if the energy consumption demand increases. Such flexibility makes it easier to explain the solar installation without requiring a complete overhaul of the existing solar system.
The Importance of Solar Racking
Solar energy plays an important role among renewable energy sources in the United States. Solar power currently accounts for about 3% of the world's electricity population. According to the International Energy Agency, the global installed solar capacity reached over 1,500 gigawatts (GW), producing approximately 1,300 terawatt-hours of electricity annually.
With such a massive shift, the mounting of solar panels on solar racks is pivotal in maximizing the longevity of solar installations. Here are a few reasons why solar racking is important:
Enhanced Efficiency
Solar racking systems ensure that solar panels are positioned at the optimal angle and orientation. The correctly placed solar panels would increase the efficiency. For example, a well-angled solar panel may increase energy production by up to 30% compared to improperly positioned ones.
Durability & Stability
A proper racking system provides the necessary support to withstand extreme weather conditions, like seismic activities, high winds, heavy snow, and heavy rain. Such durability and stability are very important for maintaining continuous power generation and ensuring that the lump sum investment against solar technology is not wasted.
Cost-Effectiveness
One can minimize the maintenance requirements by ensuring that the solar panels are correctly placed. Solar racks can help reduce the overall cost of solar energy. For instance, when ground-mounted solar panels come with tracking capabilities via solar racks, one can see a boost in annual energy output by 10-25%, which helps in better financial returns.
Ease in Scalability
Rightly placed solar racking systems can ensure that there is always some room for scalability. It makes it easier for users to expand solar farms as the demand for renewable energy grows. Such flexibility supports the gradual transition from fossil fuels to renewable energy sources.
Sustainability
Several countries have started implementing tax rebates and incentives for those who install solar panels at their place. By supporting the widespread adoption of solar energy, the solar racking system also helps in the reduction of carbon emissions. As per another report by SEIA, by reaching 30% of solar energy generation by 2030, the US will offset nearly 700 million metric tons of CO2 annually.
What Are The Types of Solar Racking Systems?
There are different types of solar racking systems. Depending on your installation needs, demographics, and budget, you can choose from ground-mounted racking, roof-mounted racking, or a tracking racking system. Each type has pros and cons, making it suitable for different applications.
Ground-Mounted Racking
Ground-mounted racking system is ideal for those who are going ahead with ground-mounted solar panels. These metal-frame bodies are ideal for open areas that offer ample space and have maximum sun exposure, like solar farms or large fields. These racking systems offer flexibility in terms of location and can be adjusted for optimal tilt to maximize energy.
Pros of Ground-Mounted Racking
- It can be placed in open areas with maximum sunlight exposure.
- They are extremely easy to clean, repair, and tilt as per requirements.
- They are easily scalable to accommodate more solar output needs.
Cons of Ground-Mounted Racking
- It requires significant land areas.
- The installation cost is comparatively higher due to the need for more materials and labor.
- It might not be visually appealing if not fitted properly.
Roof-Mounted Racking
Roof-mounted racking systems are one of the most common mounting systems for solar panels. They can easily be attached to existing building structures, utilizing the rooftop space for solar panel placements. Unlike ground-mounted racking, this does not require too much space, as it can only be positioned in the available areas.
Pros of Roof-Mounted Racking
- It makes use of existing roof space.
- It is ideal for urban areas that come with limited land areas.
- The installation cost is lower as it uses existing structures.
- It can be designed to blend with the building's existing architecture.
Cons of Roof-Mounted Racking
- The amount of solar panels is restricted by the roof's size, shape, and angle.
- The racks are harder to access for maintenance.
- Improper installation of these racks can lead to structural damage.
Tracking Racking System
Technicians generally recommend the tracking racking system for solar panel installations to maximize the output. With this system in place, one can dynamically adjust the solar panel angles throughout the day to track the sun's movement. These racking systems come in single-axis and dual-axis configurations, which enhance energy yield.
Pros of Tracking Mounted Racking
- It can increase energy production by 10-25% compared to the fixed systems.
- With multiple-axis configurations, it increases the energy yield.
Cons of Tracking Mounted Racking
- It is costlier among the three due to the complexity of the tracking mechanism.
- It requires regular maintenance from the experts.
- These are more prone to mechanical issues and failures.
How Does A Solar Racking System Work?
A solar racking system is important for ensuring that solar panels are getting the maximum solar exposure, resulting in better output capability and increased durability against environmental factors.
Some of the major components of solar racking system are:
Flashing
Typically, flashing is a waterproof barrier used to seal roof penetrations where solar mounts are installed. It is generally made of steel or aluminum, which ensures longevity.
Flashings are installed around the mounts to prevent water from seeping into the roofs. This way, the solar racks protect the roof structure from damage or any leaks. This further ensures that the integrity of the roof is maintained even after drilling multiple holes for mount installation.
Mounts
Mounts are the most important component of solar racks. They are the structural elements that attach the racking system to the roof or ground and come in various forms, like L-feet, standoffs, and ground screws.
These mounts are securely fastened to the roof with the help of bolts and screws. They provide the primary support for the rails and panels, ensuring the entire system remains securely anchored.
Rails
Rails are horizontal bars that run along the length of the entire solar panel array, helping to provide a stable platform for the system.
Rails are attached to the mounts, which help align the panels correctly and maintain their respective positions over time. This also facilitates the even distribution of weight across the mounts.
Clamps
Clamps are devices used to secure the solar panels to the rails. Depending on the type of solar racking system, one can choose from a wide range of clamp options. Some of the most common types of clamps include mid-clamps, which are used between the panels, and end-clamps, which are for the ends of the solar panel array.
Clamps hold the panels tightly against the rails and ensure the solar panels do not move or dislodge. They can be tightened as per the required pressure and stability.
Working of Solar Racking System
A solar racking system functions by providing a stable framework that holds the solar panels in the required place. Here's how it functions in order to maximize the output:
Step 1: Site Assessment
Start by evaluating the installation site for optimal sunlight exposure and structural suitability. Make sure that there are no large trees or building structures that cast a shadow on the solar panels once they are installed.
Step 2: Mount Installation
Once the site is carefully assessed, you can secure the mounts to the roof or grounds. If you are going ahead with roof installations, you will need to start by drilling holes and then fastening them to the roof's structural elements.
Step 3: Installing Flashings
After drilling holes in the structure and securing the mounts, you can place the flashings over them to prevent water leaks. This is a crucial step, as it will ensure that the roof remains waterproof after you have installed the solar panels.
Step 4: Attaching Rails
Now, start attaching the rails to the mounts. Make sure that the attached rails are leveled and aligned so that the entire rack system can support the installed solar panels.
Step 5: Panel Installations
Start positioning the solar panels onto the rails according to the design layout provided by the manufacturer. Make sure to leave proper space between the panels so there will be room for thermal expansion.
Step 6: Securing Panels With Clamps
You can use mid-clamps and end-clamps to secure the solar panels to the rails. Once you have secured the clamps, make sure to tighten them up to the fullest so the solar panels will stay firmly held in place.
Solar Mounting Process
The solar mounting process involves several important steps that ensure that the installed solar panels are optimally positioned for maximum energy capture. Here is a detailed walkthrough of the solar mounting process:
Preparation: Inspect the installation site and ensure it is free from clutters or debris that might hinder the mounting process.
Layout Out the Mounts: Always mark the mounts' locations per the solar panel installation design. Ensure you have accurate spacing and alignments.
Drilling & Securing Mounts: Start by drilling and securing the mounts into the structural elements using different gear.
Installing Components: Now install solar rack components, like flashings and rails. Once installed, place the solar panels and secure them with the panels.
Electrical Connections: Once you have secured the solar panels with the clamps, connect the electrical components. Correctly wire the panels together and connect them to the compatible inverter and other solar system parts.
Final Inspection: After everything is properly connected, conduct a thorough inspection to ensure all the components are correctly placed, and all the electrical connections are made correctly.
How Much Does It Cost For A Solar Racking System?
The total cost for a solar racking system for a typical residential property in the United States can range from $1500 to $7000, depending on the solar panel brands and demographics. The cost of large commercial systems can range from $50,000 to $150,000 or more, depending on the specific requirements and complexity of the solar panel installation process.
Cost of Ground-Mounted Racking Systems
For ground-mounted racking systems, the per-panel cost comes to around $100 to $200. A typical residential system with 20 panels can range from $2,000 to $4,000.
Cost of Roof-Mounted Racking System
The cost per panel for a roof-mounted racking system is around $50 to $150. A standard residential property with 20 panels can range from $1,000 to $3,000.
Cost of Tracking Racking System
For tracking-mounted systems, the per-panel cost is around $500 to $1000. For a large commercial system that requires 100 panels, the cost can range from $50,000 to $100,000.
Additional Cost
Apart from the solar rack cost, different miscellaneous charges add to your solar panel installation budget. For instance, labor can add $0.20 to $0.50 per watt, adding around $1000 to $5,000 for a residential property.
Then there are permit and inspection fees that you need to pay to the auditor. For example, the permit fee in Philadelphia is $200. If you are going ahead with custom-designed systems, then you can add an additional $500 to $2,000 to the total cost for additional engineering.
As you can see, mounting the solar racking system requires a hefty cost, which does not include the cost of purchasing the solar panels and their maintenance.
If you are looking for ways to power up your house using solar energy, consider Jackery Solar Generators. These generators come with powerful batteries and no hidden charges, making them ideal for those who are looking for a long-term solution to reduce electricity bills.
Jackery Solar Generators Explained
Jackery is an internationally recognized solar energy brand that manufactures solar generators, solar panels, and portable power stations. Since its inception in 2012, Jackery has filed 295 patents for portable power stations and solar generators, making it a household name across North America.
Jackery Solar Generators are compact solar generators that are designed to quickly and efficiently charge household and outdoor appliances with the help of solar energy. The Jackery SolarSaga Solar Panels come with monocrystalline silicon solar cells that absorb the sun's rays and convert them into electricity. When these solar panels are connected with Jackery Explorer Portable Power Stations, the built-in pure sine wave inverter then converts it into AC electricity, letting you charge your appliances.
Jackery Solar Generator 3000 Pro
If you live in an area that faces regular power cuts, are simply looking to reduce your monthly electricity bills, or are looking for alternate solutions to the high-cost solar panel installations, then you should check out Jackery Solar Generator 3000 Pro. The sturdy and compact design of these generators makes them ideal partners for charging 99% of your household and outdoor appliances. With an additional transfer switch, this solar generator can create a whole-home backup solution.
Appliances Working Hours
- Vacuum Cleaner (1500 W): 1.7 H
- Rice Cooker (1000 W): 2.5 H
- Sump Pump (800 W): 3.2 H
- Refrigerator (800 W): 3.2 H
Customer Review
"This machine is amazing. Great alternative to propane and gas. Quiet and solar charging capable. Recommend to everyone!" -- Ben Ceralde.
Jackery Solar Generator 2000 Plus
Jackery Solar Generator 2000 Plus features wheels and handles, so one can easily carry them in and around their house. This unit is ideal for extended blackouts, off-grid living, and powering your appliances when you are camping or RVing. With multiple AC outputs and different charging options, Jackery Solar Generator 2000 Plus can be your go-to device when it comes to powering heavy appliances like air conditioners, CPAP machines, sump pumps, etc.
Appliances Working Hours
- Coffee Machine (1500 W): 1.1 H
- Electric Kettle (1500 W): 1.1 H
- Toaster (1100 W): 1.5 H
- Microwave Oven (1000 W): 1.7 H
Customer Review
"I went off the grid with it, and we love it. We live in a camper and power up everything for at least 2 days without charging but using everything so I'm very happy that we got it." -- Marcin Powichrowksi.
Jackery Solar Generator 2000 Plus Kit - 4kWh
If you want a powerful solar generator that can charge 99% of your household appliances, you may go ahead with Jackery Solar Generator 2000 Plus Kit (4kWh). The solar generator features double wheels, a foldable handle, and a suitcase-style design for quick and easy movement. Whether you're planning to prepare for extended power outages or wish to keep most appliances charged during RV trips, the Jackery Solar Generator 2000 Plus Kit (4kWh) might be an ideal choice.
Appliances Working Hours
- Electric Grill (1800 W): 1.9H
- Air Conditioner (1500 W): 2.3 H
- Microwave (1300 W): 2.6 H
- Mixer Grinder (600 W): 5.7 H
Customer Review
"I have used the 2k+, and it operates great. I ran an Iceco refrigerator for 5 days and went to 67%! Will try solar panels! More to do! Am impressed!" -- Mark Jensen.
What To Consider When Choosing The Solar Racking System
There are several important aspects that one needs to consider when choosing the solar racking system for solar panel installation. By carefully considering the important factors, one can ensure that the finalized solar racking system meets their needs and provides reliable performance.
Some of the key factors are:
Aesthetics
Most households prefer a visually appealing solar system. So, always carefully choose a system that complements the building's design and does not detract from its overall architectural design.
Leak Protection
Do not compromise while selecting the flashing and seals. These are important solar rack components, preventing water ingress and protecting the roof structure from damage.
Roof Shape & Attributes
Always consider the roof or ground's design before deciding on roof-mounted or ground-mounted solar rack systems. The type and shape of the roof directly impact the choice of racking system. For instance, flat, sloped, metal, or even tilted roofs require specific mounting solutions.
Solar Panel Compatibility
Before investing significantly in solar racks, ensure they are fully compatible with your choice of solar panels. Double-check the type and size of solar panels you intend to use, and then finalize the solar racks. Remember that not all racking systems work with every type of panel, so it is always recommended to cross-check compatibility.
Cost of Solar Racks
Try to balance the racking system's initial cost with its benefits. While cheaper flashing, rails, mounts, and clamps may be appealing, you should invest in a high-quality and durable system that can help you save money in the long run by reducing replacement costs.
Solar Racking FAQs
What size of solar generator do I need for my home?
The size of the solar generator that you need for your home depends on your appliances and how many appliances you intend to run concurrently. Let's assume a scenario where you intend to use Jackery Solar Generator 3000 Pro to concurrently power and charge a refrigerator (500W), television (60W), and smartphone (20W); then the total working hours you will get can be calculated with the following formula:
Working Hours = Battery Capacity in Wh * 0.85 / Wattage Consumption of the Appliances
Working Hours = 3024Wh * 0.85/580W = 4.43H
This means that with a Jackery Solar Generator 3000 Pro, you can run all of these appliances for 4.44 hours until the solar generator gets completely discharged.
Note: This solar generator's battery capacity is multiplied by 0.85 to account for the power loss during the initial appliance charging.
How long does solar racking last?
Solar racking systems typically last for 25 to 30 years, but their lifespan and durability depend on multiple factors, including solar panels, weather conditions, maintenance frequency, and overall build quality.
What is the warranty on solar racking?
The warranty of solar racking depends on the manufacturers. However, most solar racking systems would come with a warranty ranging from 10 to 25 years.
How much does solar racking cost per watt?
According to NREL, the cost of a residential solar racking system is approximately $0.16/W. Depending on the type of system and installation requirements, the overall cost can range from $0.10 to $0.30/W.
What are the top brands of solar racking?
Some top brands of solar racking are IronRidge, Unirac, EcoFaster, GAF, Nuance Energy Group, SolarMount, and OMG Roofing Products.
Importance Of Solar Racking System & Alternative
Solar racking systems play an important role in solar installations. The rightly placed solar racks ensure optimal energy capture. Different types of solar racks offer unique advantages, and by understanding their types and components, one can understand the detailed installation process.
That said, the cost of a solar rack ranges from $0.10 to $0.30/W and when this amount is added to the cost of solar panels, then the overall cost reaches roughly $20,000. If you wish to incorporate eco-friendly ways to reduce your electricity bill and go solar, then you can check out Jackery Solar Generators. When operational, these portable generators emit little to no noise and come at a fraction of the cost of the full-fledged solar panel installation cost.
