How Many Amps Does a TV Use?

When someone examines their household electricity consumption, they often wonder how many amps a TV uses so they can make a well-informed decision. A typical household television uses between 0.5 to 2 amps. It all depends on the model, size, and technology. For instance, TVs like LED and LCD models consume less power and draw less amperage.

However, if you still have older models, such as CRT or Plasma TVs, they require higher amps due to their less efficient technology. If your profession demands constant use of television or large screens and you are looking for a sustainable option to reduce your electricity bills, then you can check out Jackery Solar Generators. These solar generators are built to last for years and can charge up to 99% of your household appliances.

Key Takeaways

• Most modern televisions use between 0.5 to 2 amps when they are connected to a 120-volt outlet.
• There are different methods to calculate the amps used by your LED, OLED, and QLED TVs.
• You should turn off your TV and remove the plug when it is not operational to lower its energy consumption.
• Switching to solar energy to power your TV can help you reduce your reliance on the grid and contribute to a more sustainable model.

How Many Amps Does a TV Use?

Typically, televisions use between 0.5 to 2 amps. So, if you wonder how many amps a 32-inch TV uses or how many amps a smart TV uses, then you will need to understand that the exact answer depends on several factors, like screen size, display technology, and efficiency features.

For instance, a 32-inch modern TV like LED or LCD typically draws less than one amp, making it an energy-efficient device. Similarly, OLED and QLED TVs also tend to be on the lower end of the scale, thanks to their advanced power-saving features.

The exact amps a TV uses also depend on whether your unit is in standby mode, regular operation, or displaying HDR content. In order to understand how many amps a 50-inch TV uses, you will first need to understand the specific power requirement, which will also help you understand its amp usage.

Definition of Amps, Volts, Watts, Running Watts

To understand how many amps a TV uses per hour, we will first need to examine the technology in detail and understand watts, volts, and amps.

Amps (Amperes): Amps measure the flow of electrical current that your TV draws from the power supply. It is always recommended to understand how amps are calculated so you can analyze the monthly electricity bill.

Amps = Watts ÷ Volts

Volts: Volts measure the electrical potential that pushes electric current through the circuit. In most American homes, all types of TVs are plugged into outlets that provide 120 volts. The voltage will remain constant throughout the operation, so it becomes important to understand how it interacts with amps.

Watts: Watts represents the total power consumption of your television. When you see a television or any other electronic appliance rated at a certain number of watts, it tells you how much electricity it consumes when running at its standard capacity.

Watts = Volts × Amps

Running Watts: Running watts refers to the continuous power your TV uses when it's operating under normal conditions. The understanding of running watts is recommended to analyze the energy budgeting or when considering moving towards a backup power source, like solar generators.

Running Watts = Volts × Running Amps

If you want to know how many watts a TV uses, you can refer to the detailed guide analyzing the data table of different TV sizes. Moreover, if you want to understand amps, watts, and volts, you can also refer to our guide explaining the detailed relations and differences between these basic units of electricity.

How Many Amps Does a CRT, Plasma, LCD, LED, OLED, and QLED TV Use?

There are different television types in the market, each of which uses varying amounts of electricity, which directly affects their amp usage. For instance, older CRT TVs typically draw 1 to 3.3 amps. Plasma TVs also consume more electricity and tend to use somewhere between 1.25 and 4.2 amps. In contrast, LCD and LED TVs are more energy-efficient and draw between 0.5 to 1.25 amps and 0.42 to 0.83 amps, respectively.

Similarly, OLED and QLED TVs use the latest energy-saving technology while ensuring superior picture quality. Such television units draw 0.5 to 1.25 amps.

Here's a detailed comparison of the different types of television and their wattage and amp usage:

How Many Amps Does a TV Draw on a Startup?

Unlike appliances that come with motors or compressors, such as refrigerators or air conditioners, televisions generally do not have a significant surge wattage. In general, all modern televisions usually have a relatively consistent power draw when they are turned on. The initial power draw when the television is first turned on is very close to its running wattage, which makes surge wattage almost negligible in most cases.

Startup Watts vs. Running Watts

Since there is no motor that requires a large initial current, the startup wattage is almost always very close to its running wattage in most televisions. Whether you have an LED, LCD, OLED, or QLED TV, the startup wattage will be nearly identical to its running wattage. This means that if your LED TV runs at 100 watts, its startup wattage might be marginally higher.

Suppose you run a TV at 120 volts, which typically draws 1 amp of current, then:

Running Watts = Volts x Amps = 120V x 1 amp = 120 watts

For most modern TVs that come with energy-saving features, running watts can range from 50 to 200 watts. However, the running watts depend on the television size and model.

Startup Amps vs. Running Amps

Unlike heavy-duty appliances, televisions generally have a very low difference between startup and running amps. For instance, if a TV uses 1 amp when running, its startup amp draw will be nearly the same.

Suppose you have a 120W television plugged into a 120-volt outlet, then:

Running Amps = Watts ÷ Volts = 120W ÷ 120V = 1 amps

Even though there is hardly any difference between the startup amp and the running amp, for the sake of understanding how many amps a TV uses, let's consider a minute power fluctuation where the TV will briefly use 130W at startup and is plugged into a 120-volt outlet, then:

Startup Amps = Startup Watts ÷ Volts = 130W ÷ 120V = 1.08 amps

How to Calculate Your Television Amps

If you want to understand how much amp your TV uses so you can evaluate your energy requirements, then you will first need to learn how to calculate your television amps. There are different methods that help us calculate the amps of a TV. Before you ensure the compatibility of your television with power sources like solar generators, check out the following methods to determine its amperage.

Method 1: Manufacturer Details - Energy Star Rating

If you do not wish to get confused with all the calculations or do not wish to buy a third-party device to calculate your television amps, then you can simply refer to the manufacturer's labels that list all the important electrical details, including the wattage and voltage.

Most households have started buying Energy Star-rated appliances that meet certain energy efficiency standards. By checking the label, you can get a good estimate of your TV's power usage. Energy Star ratings can also help you find the approximate amps value.

For instance, if the label reads that the TV is of 100W and you know that it is plugged into a 120-volt outlet, then:

Amps = Watts ÷ Volts = 100W ÷ 120V = 0.83 amps.

Method 2: Determine the Amps from the Wattage

If the manufacturer's details are unavailable, or even if you decide to double-check the information, then you can simply calculate the amps by checking the daily watt-hours it uses and the voltage of the power source.

If your 100W TV is run for 5 hours per day, then it would mean it consumes 500 Wh daily. With the help of daily watt-hours, you can calculate the amps by the following formula:

Amps = Daily Watt Hours ÷ Volts = 500Wh ÷ 120 V = 4.17 amps daily.

Method 3: Use a Television Power Monitor

If you do not wish to calculate the amps using the traditional method and wish to calculate the exact amps that your TV requires, you can purchase a television power monitor system that measures the actual power usage and provides a precise required reading.

You can connect the television power monitor to your wall outlet and then plug your TV into the meter. The monitor will measure the electricity flowing to the TV in real-time and present the exact readings for wattage, voltage, and amps.

Tips to Save Your Electricity Bill

The energy consumption of television has increased ever since the introduction of different OTTS. Moreover, most work-from-home professionals also use large screens as their secondary monitors. Understanding and finding quick tips to reduce energy consumption is not only economically friendly but also improves your television's overall lifespan.

Some of the most common tips and practices to save your electricity bills are:

• By reducing your television's brightness and contrast settings to moderate levels, you can save energy without sacrificing viewing quality.
• Most TVs have 'Eco Mode' or 'Energy Saver' mode, which adjusts the TV's performance to reduce power usage.
• Always shut down the TV from the main power source and remove the plug from the outlet to avoid the phantom load.
• For a more sustainable and long-term solution, consider using solar energy to power your television and other high-wattage appliances.

Solar Generators for Television

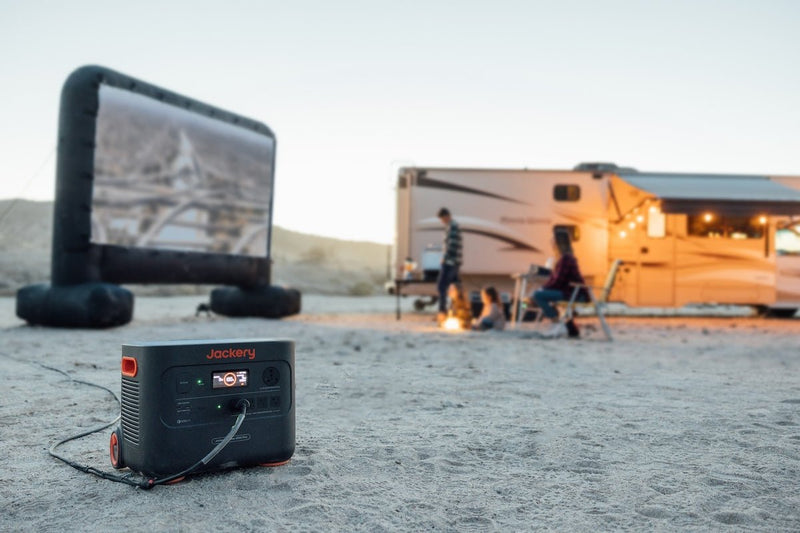

If you frequently go camping and are looking for a power backup solution to turn on your television or connect a projector to stream your shows or movies, you can choose a Jackery Solar Generator. These solar generators are lightweight and can charge up to 99% of your household appliances, including large TV screens, microwave ovens, refrigerators, and more.

The mechanism of Jackery Solar Generators is pretty simple. These solar-powered units come with Jackery SolarSaga Solar Panels, which are made of monocrystalline silicon solar cells that harness the solar power. Once the DC electricity is generated through these solar panels, they are then transferred to power stations that convert it into AC electricity for you to use.

Jackery Solar Generator 2000 Plus

The Jackery Solar Generator 2000 Plus is a powerful unit from Jackery that features fast solar charging and advanced IBC technology. It can charge up to 99% of your electronic appliances, including multiple TVs, smartphones, air conditioners, and more. Add-on battery packs can also expand the Jackery Solar Generator 2000 Plus, making it ideal for off-grid or RV living.

Jackery Solar Generator 1000 Plus

The Jackery Solar Generator 1000 Plus is ideal for those who are looking for a reliable solar-powered backup solution for camping, off-road living, and home emergencies. With whisper-quiet operation and no harmful fumes, this solar generator is a great companion for gamers who use TV as a second screen and are looking for a reliable battery backup solution for extended hours.

Jackery Solar Generator 300 Plus

If you are looking for a lightweight solar generator that can easily be packed in your backpack, then check out the Jackery Solar Generator 300 Plus. This portable unit comes with a long-lasting battery that features one 100W and another 15W USB-C port, ideal for powering your television and smartphones simultaneously.

FAQs About Television Amps

How many amps does a 55-inch TV use?

A 55-inch TV typically uses between 0.5 and 1.5 amps, depending on the model and technology. For instance, a 55-inch LED consumes around 90 watts, and if it were connected to a 120-volt circuit, it would draw 0.45 amps.

How many amps does a smart TV use?

A smart TV generally uses between 0.5 and 1.5 amps, depending on its size and features. On average, smart TVs are around 80 to 100 watts, and when plugged into a 120-volt circuit, they would draw 0.6 to 0.83 amps.

How many amps does a 50-inch flat-screen TV use?

A 50-inch flat-screen TV typically draws between 0.7 and 1.2 amps. The amp usage can vary slightly depending on whether the TV is an LED, LCD, or OLED model and its specific wattage. For instance, if a 50-inch LED TV of 72 watts is connected to a 120-volt outlet, it would draw 0.6 amps, but if it is an LCD TV of 150 watts, it would draw 1.25 amps.

How much power does a 32-inch TV use?

A 32-inch TV usually consumes between 30 to 55 watts, which translates to approximately 0.25 to 0.45 amps when connected to a standard 120-volt outlet.

Conclusion

Even if you have an LED or LCD or you are planning to get higher-end OLED or QLEDs for your home, learning how many amps a TV uses would help you understand the power usage. Implementing energy-saving tips such as adjusting brightness settings and enabling power-saving modes can reduce electricity costs. Additionally, you can consider using Jackery Solar Generator as a sustainable power source that not only reduces your monthly electricity bills but will further ensure that you can turn on your TV even when living in an RV or camping with friends and family.
