Off-grid solar power systems provide an independent energy source for homes, cabins, and remote locations. When you are designing an off-grid system, the first thing that you are going to question is how to calculate the off-grid battery size and how much battery size you would need. Just like any other off-grid system, the cost of off-grid solar power systems can be easily calculated when you identify the energy requirements, battery capacity, and additional components.
A well-structured off-grid solar power system for a home not only reduces your reliance on traditional power sources but also ensures that when you are camping or living off-grid, you have a way to power your appliance. Jackery Solar Generator is an ideal solar-powered off-grid generator that offers enhanced longevity, better efficiency, and improved sustainability, letting you power important off-grid appliances.
Key Takeaways
- Solar panels, charge controllers, battery bank, inverter, and together make an off-grid solar power system.
- The total cost of an off-grid solar power system depends on system battery size, battery storage, solar panel efficiency, charge controller selection, and installation expenses.
- While there are different off-grid solar systems, a portable off-grid is ideal for household and outdoor requirements.
- Jackery Solar Generators are ideal for all those who want a reliable portable power system for household emergencies and off-grid living.
What Are Off-Grid Solar Power Systems?
Off-grid solar power systems generate and store electricity without relying on traditional power grids. These stand-alone solar systems are useful in remote locations, for homeowners facing extended power outages, or for those looking to achieve energy independence.
Several small off-grid solar power systems provide a consistent power source even in adverse weather conditions, which makes them an ideal power backup solution. Furthermore, unlike on-grid power solutions, off-grid solar power systems with battery storage require batteries to store energy for later usage.
Key Components of Off-Grid Solar Power Systems
According to Energy.gov, off-grid solar power systems must be carefully designed to meet energy needs while considering factors such as battery depth of discharge (DoD), system efficiency, and peak power requirements. When planning to live off-grid and aiming to completely rely on the on-grid, then understand that proper battery selection and energy management strategies are essential to provide continuous power, particularly during periods of low sunlight.
Before calculating the battery size for an off-grid power system, it is essential to understand the fundamental components that make up an off-grid solar power system. Some of the most important components are:
- Solar Panels: Solar panels are the most important component of an off-grid solar power system. It captures sunlight and converts it into electricity. There are several types of solar panels available in the market, like monocrystalline, polycrystalline, and thin-film.
- Charge Controller: They are useful when it needs to regulate the flow of electricity from the solar panels to the battery. Their primary role is to prevent overcharging and deep discharging.
- Battery Bank: Battery banks store the generated electricity so the residents can power their appliances when solar energy is unavailable. There are several battery chemistries available in the market. However, Lithium-ion, especially LiFePO4, offers higher efficiency, longer lifespan, and lighter weight.
- Inverter: The core purpose of adding an inverter to your small off-grid solar power system is to convert the stored DC power from the batteries into AC power so one can power or charge the household appliances. If you are looking for a long term solution, then going with a pure sine wave inverter is highly recommended.
- Portable Units: Even if you have a full-fledged off-grid solar power system, you can always go ahead with a small portable unit that might work as a backup solution in case the primary one encounters any issues. These small portable units provide additional power support during extended periods of low sunlight.
How to Calculate Battery Size for Off-Grid Solar Power Systems
Calculating the battery size for off-grid solar power systems is critical for maintaining a reliable and continuous energy supply when needed. The calculator process requires careful assessment of total energy consumption, peak power demands, and efficiency losses to ensure optimal system performance.
Here is a step-by-step process to help you calculate battery size for your small off-grid solar power systems:
Step 1: Determine Power Consumption
In order to understand the cost and the battery size of off-grid solar power systems, you should start by calculating the total watt-hours consumed daily by all the essential appliances combined. In such a scenario, you can include all the important off-grid appliances as they contribute significantly to daily consumption. For instance:
- LED Lights (10W each, 5 bulbs, 6 hours/day) = 10W x 5 x 6 = 300Wh
- Refrigerator (120W, 24 hours/day, 50% duty cycle) = 120W x 24 x 0.5 = 1440Wh
- High-End Laptop (60W, 5 hours/day) = 60W x 5 = 300Wh
- Water Pump (500W, 1 hour/day) = 500W x 1 = 500Wh
- Total Daily Power Consumption = 2540Wh
Step 2: Factor in System Efficiency & Losses
One must understand that not all energy generated can be used to power the appliances. Batteries and inverters have different efficiency ratings that should be accounted for when calculating the battery size for off-grid solar power systems. Batteries typically lose energy due to internal resistance and temperature fluctuations. Similarly, inverters also experience losses when converting DC power to AC power.
Considering these losses:
- Battery efficiency: ~80%
- Inverter efficiency: ~85%
Total adjusted consumption: 2540Wh ÷ (0.80 × 0.85) ≈ 3735 Wh
Step 3: Determine Required Battery Type
When choosing a battery for off-grid solar power systems, you can choose between lithium-ion or lead-acid. However, if you want higher efficiency, longer lifespan, and greater depth of discharge, then you should go ahead with a lithium-ion battery, like LiFePO4.
Step 4: Determine Required Battery Capacity
The battery capacity required depends on daily power consumption and the efficiency of the system. When you calculate the battery storage for your off-grid solar power system, always consider battery chemistry, depth of discharge, and charge-discharge cycles to estimate the correct value.
Assuming a 24V battery bank:
3735Wh ÷ 24V = 156Ah (we are adjusting the number for full daily usage)
To increase lifespan, use a Depth of Discharge (DoD) of 50%, meaning we need roughly 312Ah of battery capacity.
Step 5: Calculate Solar Panel Requirements
The selected solar panels should generate enough power to charge the battery when it is needed. In order to ensure a reliable off-grid solar power system, it is essential to consider various factors, like seasonal changes, panel orientation, shading, and more.
Let us assume that you get a total of 5 hours of peak sunlight, then:
3735Wh ÷ 5 hours = 747W of solar panels required
This means that a setup of two 400W panels would be required in this small off-grid solar power system.
Step 6: Account for Seasonal Variations
The off-grid solar power system heavily depends on weather conditions. If you do not have proper sun or have long hours of rain, then the solar panels will not work as expected. That is why it is always recommended to account for seasonal variations.
So, let’s assume that the sunlight will drop to 3 hours during the winter, then:
3735Wh ÷ 3 hours = 1245W of panels required
Tips: You can either add more panels to mitigate this issue or add battery packs that would work as a secondary battery storage unit for cloud days.
Step 7: Include a Backup Generator
Based on our ongoing example, since the total daily power consumption is around 2540Wh, a 2kW generator can be a valuable backup power source for off-grid housing. In case you need to maximize the efficiency, you can pair it with a backup generator that comes with an automatic transfer switch and a smart charge controller to optimize charging cycles.
Choosing the Right Solar Power System Type
When considering the cost of an off-grid solar power system, you will need to first understand what type of an off-grid system you are planning to use. There are different types of off-grid solar power systems and you can choose the right type based on energy needs, budget, environmental conditions, expected battery lifespan, and the potential for system expansion in the future. A few important off-grid solar power systems are:
Standalone Off-Grid Solar Systems
The standalone off-grid solar system is entirely independent of the electrical grid and relies only on solar panels, battery storage, and a backup generator to power the off-grid appliances. These standalone systems are ideal for remote locations and rural areas where grid connectivity is not an option for everyone.
Hybrid Off-Grid Solar Systems
As the name suggests, a hybrid system would integrate solar panels with an additional energy source, such as a diesel generator or wind turbine. This way, residents will have energy security and they are not dependent on only one time system. A hybrid off-grid solar system is particularly beneficial for those who experience fluctuating energy demands or live in areas that face inconsistent sunlight.
DC-Coupled vs. AC-Coupled Systems
DC-coupled solar power systems are systems that directly transfer power from the solar panels to the battery bank using a charge controller. But AC-coupled systems will convert the solar energy into AC power before storing it in the battery. The latter provides greater flexibility, but it also encounters conversion losses, which reduces overall efficiency.
Portable Solar Power Systems
Portable off-grid solar power systems offer a compact and mobile energy solution for travelers or homeowners who are looking for emergency power backup solutions for extended power outages. These systems consist of foldable solar panels, which are paired with rechargeable lithium-ion batteries that provide a renewable and convenient energy source.
The table below highlights the pros and cons of different types of off-grid solar power systems to help you determine the best fit for your needs:
Jackery Solar Generators for Off-Grid Setup
Jackery has a line of solar generators, portable power stations, and solar panels. The leading manufacturer has multiple products that help in creating off-grid solar power systems.
For instance, if you are living in an area that faces constant power outages or if you are moving to outdoor locations and are looking for a reliable backup solution, then you can always rely on Jackery’s solar-powered generators and solar panels to power your appliances. Here are a few of the Jackery’s best-selling products that are ideal for your next off-grid adventure:
Jackery Solar Generator 5000 Plus
The Jackery Solar Generator 5000 Plus features a large battery capacity that can charge your off-grid appliances, like an air conditioner, water heater, television, CPAP machine, and more. With fast charging and expandable battery capacity, this portable unit also features a 0ms UPS switch that provides uninterrupted power for your wireless electronics.
Appliance Working Hours
- Electric Water Heater (3000W) = 1.3H
- Washing Machine (1500W) = 2.6H
- Electric Oven (2500W) = 1.6H
- Well Pump (2000W) = 2.0H
- Air Compressor (2200W) = 1.8H
Customer Review:
“It was delivered, and it was everything they promised, great quality; I just ordered an extra Battery and will order more products later.” -- John R. Post.

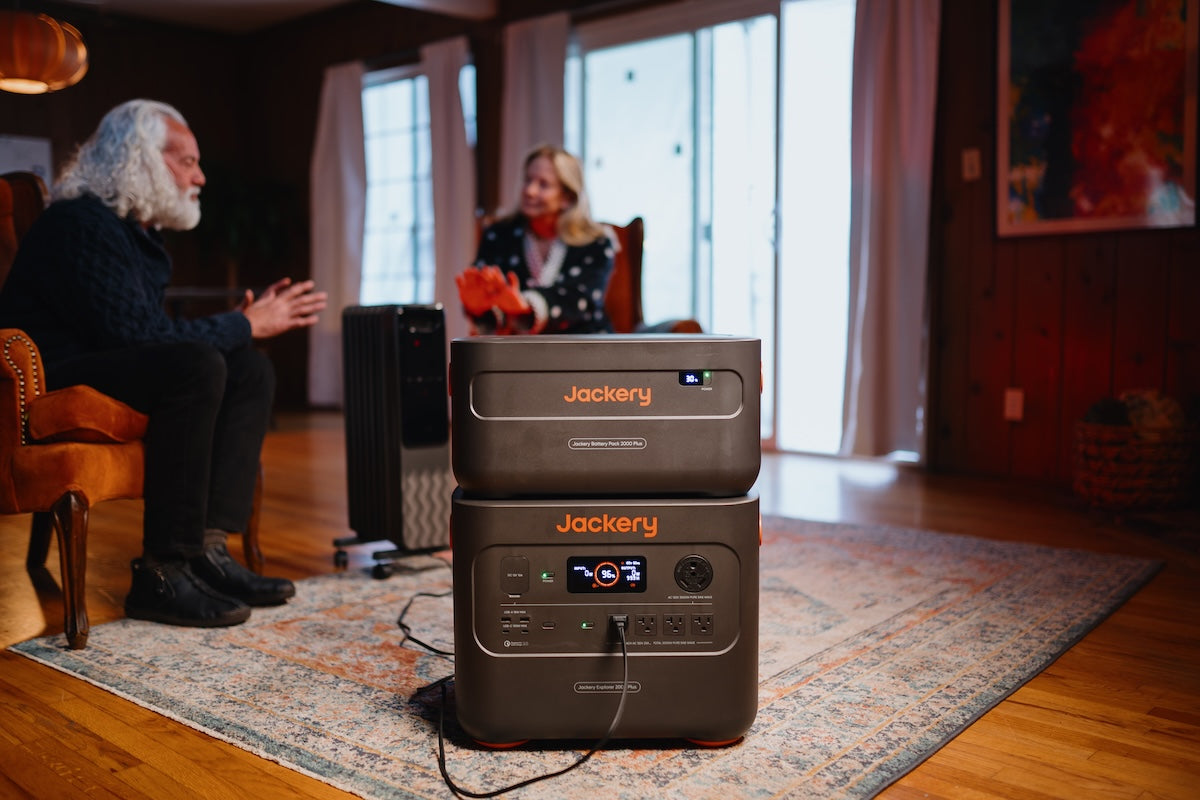

Jackery Solar Generator 2000 Plus
With advanced IBC technology, the Jackery Solar Generator 2000 Plus becomes an ideal choice for all those who are seeking fast charging solutions with solar panels. This portable and compact solar generator uses ChargeShield Technology that boosts battery life by 50%, helping off-grid travelers to rely on it to charge appliances like refrigerators, ventilators, electric ovens, electric blankets, and more.
Appliance Working Hours
- Portable Induction Cooktop (1800W) = 54 min
- Microwave Oven (1200W) = 1.3H
- Refrigerator (1200W) = 1.3H
- Electric Kettle (700W) = 2.3H
- Space Heater (1200W) = 1.3H
Customer Review:
“Just unboxed my new Jackery SolarGenerator 2000+. The packaging is superb. Very easy-to-understand instructions. It was plugged in and charging within just minutes, literally. I am happy to have this for safety and security.” -- JSY.
Off-Grid Solar Power System Cost Analysis
The cost of an off-grid solar power system depends on multiple factors, including but not limited to overall system size, battery storage capacity, solar panel wattage inverter type, controller section, and more.
Large off-grid solar power systems would require more solar panels and battery storage, which will directly impact its upfront cost, but will offer greater energy security in long-term usage. At the same time, lithium-ion batteries also have a higher initial price but better efficiency compared to lead-acid batteries.
Moreover, weather conditions also impact the price of off-grid solar power systems. Areas with low solar exposure will require additional panels or backup power sources, compared to the ones where peak sunlight lasts for at least 5 hours per day.
Here’s an estimated off-grid solar power system cost as per different sizes:
|
Solar Generator Size |
Cost |
|
2000W |
$2500 - $3500 |
|
3000W |
$3500 - $4500 |
|
4000W |
$4500 - $5500 |
|
5000W |
$5500 - $6500 |
|
6000W |
$6500 - $7500 |
Note: These are just estimated values, and may vary depending on the manufacturer, battery type, components, etc.
Compared to the off-grid solar systems with multiple components, Jackery Solar Generators come at an affordable price. For example, a home battery backup like Jackery Solar Generator 5000 Plus costs only $4,999. It includes a Jackery Explorer 5000 Plus Portable Power Station and 2*Jackery SolarSaga 500X Solar Panels. The off-grid setup helps you power most household appliances for long hours during off-grid living.
Off-Grid Solar Power Systems FAQs
What size solar system do I need to run off-grid?
The size of the off-grid solar system you need for your outdoor adventures will depend on your daily energy consumption, battery storage, and peak power demand. A small RV may require a 2-3kW system, but if you have a large setup with multiple appliances, you may need to rely on a 5-10kW system.
How many kW is an off-grid solar system?
Off-grid solar systems range from 2kW to 10kW or more. The small-sized off-grid solar system is suitable for basic lighting, charging, and powering small appliances. While 5-7kW systems can power mid-range household appliances. If you are looking to run multiple large appliances simultaneously, you can check out large 10kW+ solar systems.
How long will a 5kW battery last?
A 5kW battery will last depending on the load being powered. If you are running a 500W load, the battery can last 10 hours (5000Wh ÷ 500W = 10 hours). However, if your off-grid setup consumes 1000W per hour, the battery will last roughly 5 hours.
How many 12V batteries are needed for a 5kW solar system?
A 5kW solar system requires sufficient battery storage to match energy needs. Assuming 12V, 200Ah batteries, each battery provides 2400Wh (12V × 200Ah). To store 5000Wh, you would need at least 3 batteries. If we also account for efficiency losses, a 4-battery setup is more practical.
How many batteries are required for a 1.5-ton AC?
A 1.5-ton AC consumes around 1.5-2kW per hour. Let's assume that you have a 12V, 200Ah battery, where each battery provides 2400Wh of usable power. If the AC runs for 4 hours, it would require 6-7 batteries, when accounting for 50% depth of discharge as well.
Conclusion
Creating an off-grid solar power system becomes very exciting and affordable if you are aware of all the components that you would require. From choosing the right solar panels to calculating the battery size and determining which battery is right for your needs, an off-grid solar power cost analysis will help you determine how much power you can expect that will fit into your budget.
Having said that, if you are looking for an affordable, reliable, and more efficient way to power your appliances during emergency power outages or off-grid living, then you can find Jackery Solar Generator as your ideal companion. These portable solar generators and Jackery SolarSaga Solar Panels reduce your reliance on on-grid power supplies and help you create an off-grid solar power system with battery storage that charges your essential appliances.
